Ss Aisi 304 0.5mm Slot Wedge Wire Sheets 2063mm Length

Name: Ss Aisi 304 05mm Slot Wedge Wire Sheets 2063mm Length
Brand: Heng Yuan
Price: 1 USD

Quality Ss Aisi 304 0.5mm Slot Wedge Wire Sheets 2063mm Length wholesale

Brand Name : Heng Yuan

Model Number : HY112507

Certification : ISO9000

Place of Origin : Hengshui city,Hebei,China

MOQ : 1pcs

Price : Negotiation

Payment Terms : L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/Month

Delivery Time : 7-10 work days,according to the quantity

Packaging Details : Wooden boxes

Name : Wedge Wire Slotted Screen Panels

Material : Stainless steel

Grade : 304

Slot size : 0.5mm

Length : 2063mm

Width : 1876mm

Wire size : 3*4.6mm

Support rod : 3*4.6mm

Surface : Acid washing

Package : Wooden box

Contact Now

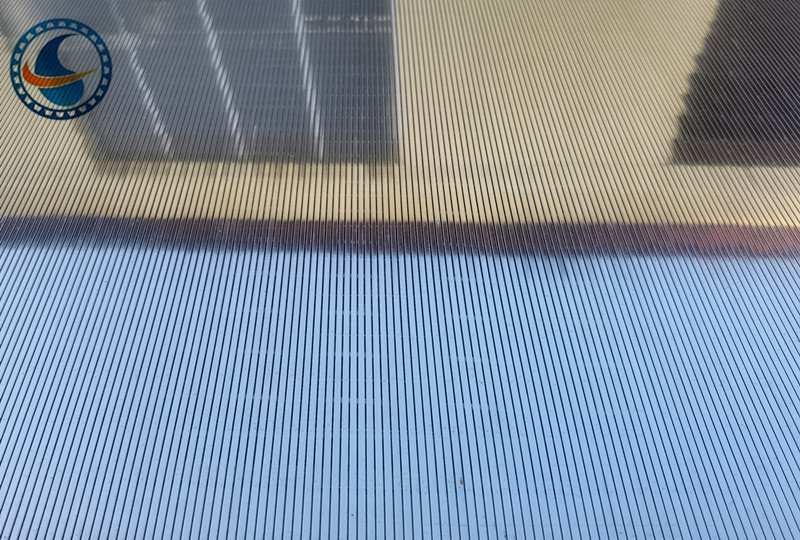

Wedge Wire Slotted Screen Panels

With a complete range of modular screen panels for mineral processing, Hengyuan ensures your screen deck is optimised to achieve your required cut size efficiently, reliably and over an extended service life.

Stainless Steel wedge wire Slotted Screen Panels are all custom made and can be designed and built to fit any screening equipment in any specified width and length. Need a flat screen filter panel on an extra-large scale? No problem. Plus, size, shape and spacing of profile wire are engineered to meet your special job requirements. Individual wire on the working surface of each falt wedge wire screen can be manufactured at a tilt to better serve your needs.

It is available in a wide variety of shapes and sizes. From two basic forms, slot tubes and flat screens, almost all shapes and sizes can be developed to fit customers´ requirements.

Wedge Wire Slotted Screen Panels characteristic:

High strength
Long service life
Unbuckling
No collapse
Corrosion resistance
Flow characteristics

Wedge Wire Slotted Screen Panels Specification:

Outside Diameter

(mm)

Length (mm)

Slot (mm)

Styles of connection

29,38,42,57,63,76,89,108,150,

320,500,600,900,985,1000

1000,2000,

3000,4000 etc

0.05,0.1,0.25,

0.5,1.0 etc

Welded rings, male/female threaded coupling,

flange,closed up etc.

Explanation

Besides above of the specification screen pipe, we also can act according to the customer’s request the manufacture diameter from ￠ 25mm- ￠ 1300mm,

the length from the 100mm-6000mm series screen pipe
