SS 304 Downhole Slotted Tube Strong Corrosion Resistance
Downhole Slotted Tube Regular Specification:
Profile wire:
Width(mm): 1.0, 1.5, 2.0, 2.3, 3.0, 3.2,
Height(mm): 1.5, 2.0, 2.5, 3.5, 4.6, 6.0
Support rods:
Width(mm): 2.0, 2.2, 2.3, 2.5, 3.2
Height(mm): 2.5, 3.0, 3.5, 4.6, 6.0
Round rods : diameter from 2.50 mm to 6.0 mm
Note: other wires and rods available upon request
Slot size(mm): 0.10, 0.25, 0.70, 1.0, 2.0, 5.0 ... 45mm also achieved upon request.
Diameter(mm):48, 63, 89, 117, 168, 219, 273, 325, 500, 800, 1000
Length: up to 6 meters.
End connection: Plain beveled ends for welding or threaded male &female coupling(spiral).
Other sizes available on request. Deep well construction specifications available on question.
Water well screens are designed for depths of 100 m, 200 m, 350 m & 600 m.
Downhole Slotted Tube Specificarion:
| Material | Stainless steel |
| Grade | 304 |
| O.D | 89 mm |
| Size | 3-1/2" |
| Length | 3 m |
| Solt size | 1.0 mm |
| End connection | Thread coupling ( male / female ) |
| Wire size | 1.5*2mm Vee shaped wire |
| Support Rod | 2*3mm Vee shaped wire |
| Name | Downhole slotted tube |
Downhole Slotted Tube Characteristic:
Not easy to jam
the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.
Slot even
The CNC machine tools strictly control the gap between the wire, so that the gap is even.
Strong corrosion resistance
Stainless steel 304 have the high corrosion resistance
Downholde Slotted Tube Use:
Downhole Slotted Tube has been known as the world's leading manufacturer and provider of industrial filters since 1904.We provide screening solutions to almost every industry,including:
water well
water supply systems
Refining & petrochemical

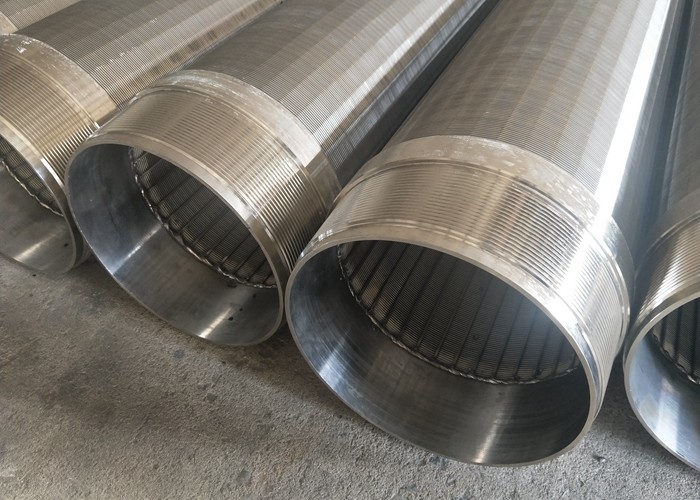

Downhole Slotted Tube Pictures
