Stainless Steel Johnson Tube Slot 60 80 Water Wire Screen

Name: Stainless Steel Johnson Tube Slot 60 80 Water Wire Screen
Brand: Heng Yuan
Price: 1 USD

Quality Stainless Steel Johnson Tube Slot 60 80 Water Wire Screen wholesale

Brand Name : Heng Yuan

Model Number : HY005

Certification : ISO,CIQ,CE, FORM E etc

Place of Origin : Hebei,China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/Month

Delivery Time : 7-10 work days,according to the quantity

Packaging Details : Moister-Barrier with each piece,64 pcs per 20 ft container

Diameter : 4-1/2",89 mm,10-3/4",273 mm etc.

Slot size : 1.0 mm, can be made by customer

Material : Stainless steel 304 / 316 L /321

Length : up to 5800 mm

Wire : 2.2*3.5 mm; 3*4.6 mm

End connection : Thread couplings

Package : Wooden box, Container

Wire shape : V shape

OEM : YES

Use : Water well filter

Contact Now

Stainless Steel Johnson Water Well Wire Screen Tube

Product Description:

Stainless Steel Johnson Water Well Wire Screen Tube is manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.

Specificarion:

Profile wire	Wedge shape, Width(mm): 0.75 1.00 1.50 Height(mm): 1.50 2.00 3.00.
Diameter(mm)	89mm ( Less than 1027mm)	Length(mm)	5500mm, (Less than 6000mm long)
Open area	Large open area	Efficiency	High
Material	Stainless steel 304 316 monel, hastelloy inconel nickel etc..	Function	liquid filtering / liquid solid separation
Quality control system	Factory own control	Cleaning way	Filter from outside to inside, easy to clean
Support rods	Square shape, Width(mm): 2.00; Height(mm): 2.30 3.00	End connection	Commen fittings, NPT ,BSP end fittings, calculate price seperately
Min slot size	50 micron	Thickness	3-10mm
Length	5500mm	Filter Rating	up to 90%
Color	Silver(metal original color)	Technique	Belgium welding

Characteristic:

Stainless Steel Johnson Water Well Wire Screen Tube have superior open area due to their continuous slot openings. The benefits of which will :

• Reduce energy consumption and increase water flow.
• Reduce erosion of entry surfaces and increase well life.
• Allow a uniform and efficient well development.
• Reduce significantly potential pump damage and subsequent maintenance costs.

Regular Specification:

SIZE (INCH)	O.D (MM)	SLOT (MM)	LENGTH (M)	COLLAPSE STRENGTH (BAR)	TENSILE WEIGHT (TON)	WRAP WIRE(WIDTH*HEIGHT) (MM)	RODS (MM)
3-1/2	88.9	1.0	3	＞22	10.2	2.3*3.5	3.8MM/22
4-1/2	114.3	1.0	3	＞28	11.5	2.3*3.5	3.8MM/22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	0.63	5.8	＞83	45	3.2*6.0	6.0MM*32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.3*3.5	3.8MM/48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.0*5.0	4.0MM/48
8-5/8	219.1	1.0	5.8	＞60	46	3.2*6.0	5.0MM/48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.3*3.5	4.9MM/55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.0*5.0	4.9MM/55
10-3/4	273.1	1.0	5.8	＞100	48	3.2*6.0	5.0MM/55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.0*5.0	4.0MM/50
14	355.6	1.0	3	＞80	37.8	3.0*5.0	4.0MM/59

Use:

water well

water supply systems

Refining & petrochemical

Filter equipment

Drum Filter

Sand control

OEM service:

We can produce products according to the needs of our customers.
Material: stainless steel 304, 316L, low carbon steel
Diameter: minimum diameter 32mm, maximum diameter 1270mm
Length: single tube can be up to 6 meters in length
Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can produce gaps of 0.1-50mm
Joints: Generally, there are joints at both ends of the pipe, such as flanges, weld rings, or threads, so that the pipes can be connected to meet the needs of use.

Pictures:

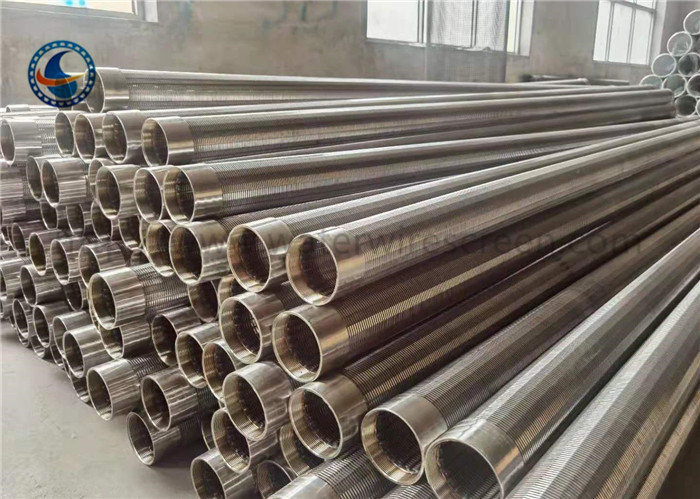

Stainless Steel Johnson Tube Slot 60 80 Water Wire Screen
