Continuous Slot Johnson VEE-Wire Flat Screen
Continuous Slot Johnson VEE-Wire Flat Screen, is welded by VEE wire and support rod.
There is a fixed value slot between each v wire.
The support bar can be a round wire ,a triangular wire, rectangle or a trapezoidal wire.
There is a certain distance between each support bar too .
The filter surface is smooth, the gap is uniform, and it is not easy to block.
We can weld the frame around the bottom or bottom of the net.
The frame can be flat steel, angle steel, channel steel, or other shapes, all of which can be produced according to customer requirements.
Continuous Slot Johnson VEE-Wire Flat Screen Regular Specification:
| Name | Continuous Slot Johnson VEE-Wire Flat Screen |
| Material | Stainless steel 304,304L, 316, 316L, 904L,Duplex steel 2205, 2507 etc. |
| Slot Size | 0.05-100mm |
| Dimension | 3000mm*3000mm |
| Length | 10-4000mm |
| Width | 10-4000mm |
| Surface treatment | Acid washing |
| Type | Flat Screen |
| Wire size (VEE-Wire) | 1*2mm, 1.2*2mm, 1.5*2 mm, 2*3mm, 2*3.5mm, 2.2*3.5mm, 3*4.6mm etc. |
| Support rod (VEE-Wire) | 2*3 mm, 3*4.6mm, 3*5mm, 3*6mm etc. |
| Distance of support rod | 10mm, 20mm, 30mm |
| Support rod (Round Wire) | ø2.8-5.0mm |
| Frame | 2*20mm, 3*30mm,4*50mm, 5*50mm, 6*50mm etc |
Continuous Slot Johnson VEE-Wire Flat Screen selection table:
| SIZES OF THE WIRE AND ROD |
| WIRE SHAPE | V | V | V | V | V | V |
| Width(mm) | 1.0 | 1.2 | 1.5 | 2.0 | 2.2 | 3.0 |
| Height(mm) | 2.0 | 2.0 | 2.0 | 3.5 | 3.5 | 4.6 |
| ROD SHAPE | V | V | V | V | V | O (round wire) |
| Width(mm) | 2.0 | 3.0 | 3.0 | 3.0 | 3.2 | Diameter |
| Height(mm) | 3.0 | 4.6 | 5.0 | 6.0 | 6.0 | 2.8~4.0mm |
Continuous Slot Johnson VEE-Wire Flat Screen Use :
Continuous Slot Johnson VEE-Wire Screen Panel can be used in food processing, malting, floor grating, wall covers and ventilating systems.

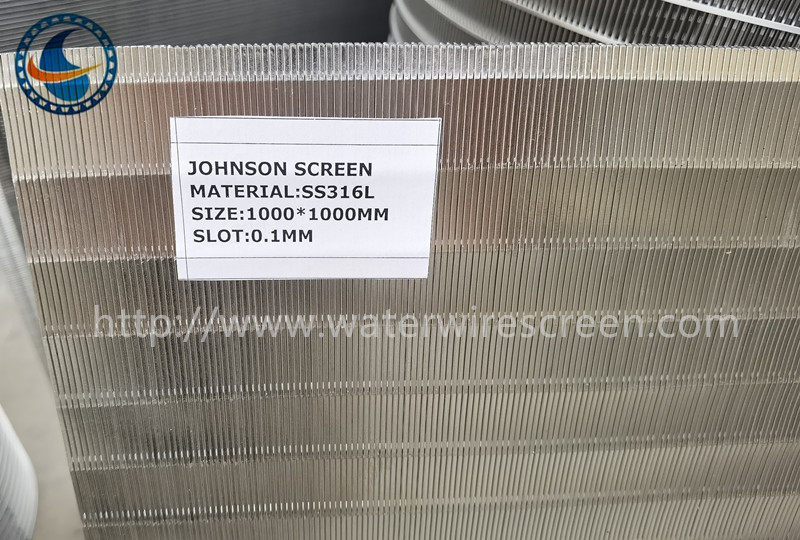

Continuous Slot Johnson VEE-Wire Flat Screen Pictures:
