Stainless Steel 304 Reverse Wedge Wire Rotary Screen Drum Cylinder Water Treatment
Wedge Wire Rotary Screen Drum Product Description:
Reverse Wedge wire screen cylinder is made by Johnson screen mesh through reverse welding . Johnson screen mesh is welded by V wire and support rod.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development. The finished reverse wedge wire screen cylinder have a smooth inside.
.
Wedge Wire Rotary Screen Drum Specification:
| Material | Stainless steel |
| Grade | 304 |
| I.D | 150-1000 mm, 300 MM |
| Slot Size | 0.7 mm |
| Slot size | 1.0 mm |
| Length | 300-3000mm, 1.2m, |
| Filter type | From inside to outside |
| Wire size | 2*3.5 mm |
| Support rod | 3*4.6 mm |
| Wire shape | Vee shaped |
Wedge Wire Rotary Screen Drum Regular Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Specification of the wrap wire:1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.
Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.
Filter Type: from inside to outside.
Other components : Flange, stiffener, lifting handle, and other type components by request.
Special specification can be made according to your need.
Wedge Wire Rotary Screen Drum Advantages:
Not easy to jam
Slot even
Strong corrosion resistance
Easy to backwash, clean without dead Angle.
Built-in scraper, brush, suction first class cleaning device.
Wedge Wire Reverse Rolled Screen,Self Cleaning Wire Screen
Wedge Wire Reverse Rolled Screen (internal circumferential wire with external axial support rods) is a kind of strainers that flow from inside to outside filtration, with smooth working surface inside.
This type wedge wire screen pipe is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic specialized wedge wire screen machine, then be made to screen pipe through cutting, reverse rolled, welded processing.
Wedge Wire Rotary Screen Drum Industry:
Chemical, petrochemical, sewage treatment, steel, urban water treatment, farmland irrigation, fruit and vegetable dehydration, solid liquid separation, livestock manure dehydration.

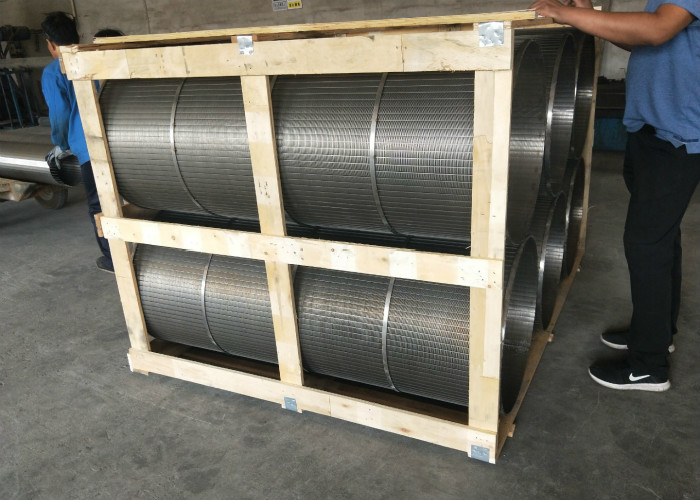

Wedge Wire Rotary Screen Drum Pictures:
