Large Diameter Water Wire Screen For Refining / Petrochemical Industry

  • 1
  • 2

Brand Name : Heng Yuan

Model Number : HY005

Certification : ISO,CIQ,CE,FORM E

Place of Origin : Hebei,China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/Month

Delivery Time : 7-10 work days,according to the quantity

Packaging Details : Moister-Barrier with each piece,64 pcs per 20 ft container

Package : Woden box, Container

Slot size : Customize size,0.05-50mm

Material : Stainless steel

Diameter : Customize size, 32-1300mm

Length : 5.8M

Grade : 304

End connection : Wleded rings

Hole shape : Slot

Type : Filter Cylinder, FIlter Elements, Wedge wire screen pipe

Usage : Liquid Filter, Solid filter

Product name : Johnson screen cylinder, wedge wire screen, screen filter , Wire wrap screen

Contact Now

Large Diameter Profile Wire Screen Pipe Stainless Steel For Water FIlter

Product Description:

Stainless Steel Large Diameter Profile Wire Screen Pipe is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods.

The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.

There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.

Specificarion:

Material Stainless steel
Grade SS304 SS316L SS321 SS201
O.D Min. 32mm Max.1300mm
Size 2-1/2", 3-1/2", 4-1/2", 5", 6-5/8", 8-5/8", 9" 10-3/4", 12-3/4", 14" 16" etc
Length 100-6000mm
Solt size 0.02-100 mm
End connection Welded rings/ Nothing
Wire size 63# 93 # 118#
Support rod 120# 140 # 170# 200#
Wire shape V shape

Regular Specification:

SIZE

(INCH)

O.D

(MM)

SLOT

(MM)

LENGTH

(M)

COLLAPSE

STRENGTH

(BAR)

TENSILE

WEIGHT

(TON)

WRAP WIRE(WIDTH*HEIGHT)

(MM)

RODS

(MM)
3-1/2 88.9 1.0 3 ＞22 10.2 2.3*3.5 3.8MM/22
4-1/2 114.3 1.0 3 ＞28 11.5 2.3*3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 ＞40 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 ＞33 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 ＞83 45 3.2*6.0 6.0MM*32
8-5/8 219.1 1.0 5.8 ＞34 21.9 2.3*3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 ＞50 38.2 3.0*5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 ＞60 46 3.2*6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 ＞50 32.9 2.3*3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 ＞60 39.5 3.0*5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 ＞100 48 3.2*6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 ＞120 37.2 3.0*5.0 4.0MM/50
14 355.6 1.0 3 ＞80 37.8 3.0*5.0 4.0MM/59

Use:

High Strength Continuous Slot Stainless Steel Water Well Drill Screen has been known as the world's leading manufacturer and provider of industrial filters since 1904.We provide screening solutions to almost every industry,including:

water well

water supply systems

Refining & petrochemical

Filter equipment

Drum Filter

Sand control

OEM service:

Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.

Custom range

Filter pipe material: mainly stainless steel, carbon steel galvanized, carbon steel spray or other customer requirements material.

Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.

Diameter: 32 mm - 1000 mm.

Length: 2.9 M, 5.85 M. Up to 6 M.

Connection form: groove connection/weld ring connection or thread connection.

Pictures:

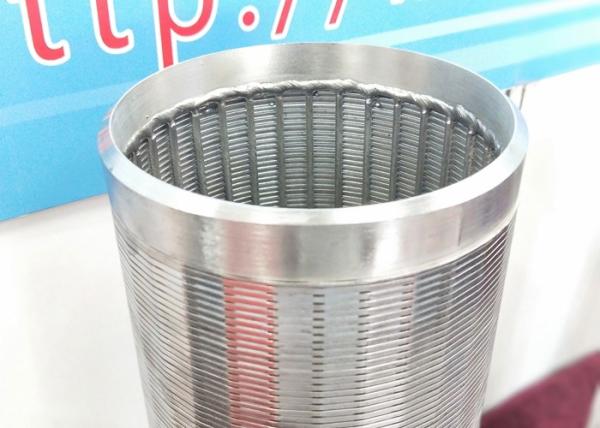

Large Diameter Water Wire Screen For Refining / Petrochemical Industry
