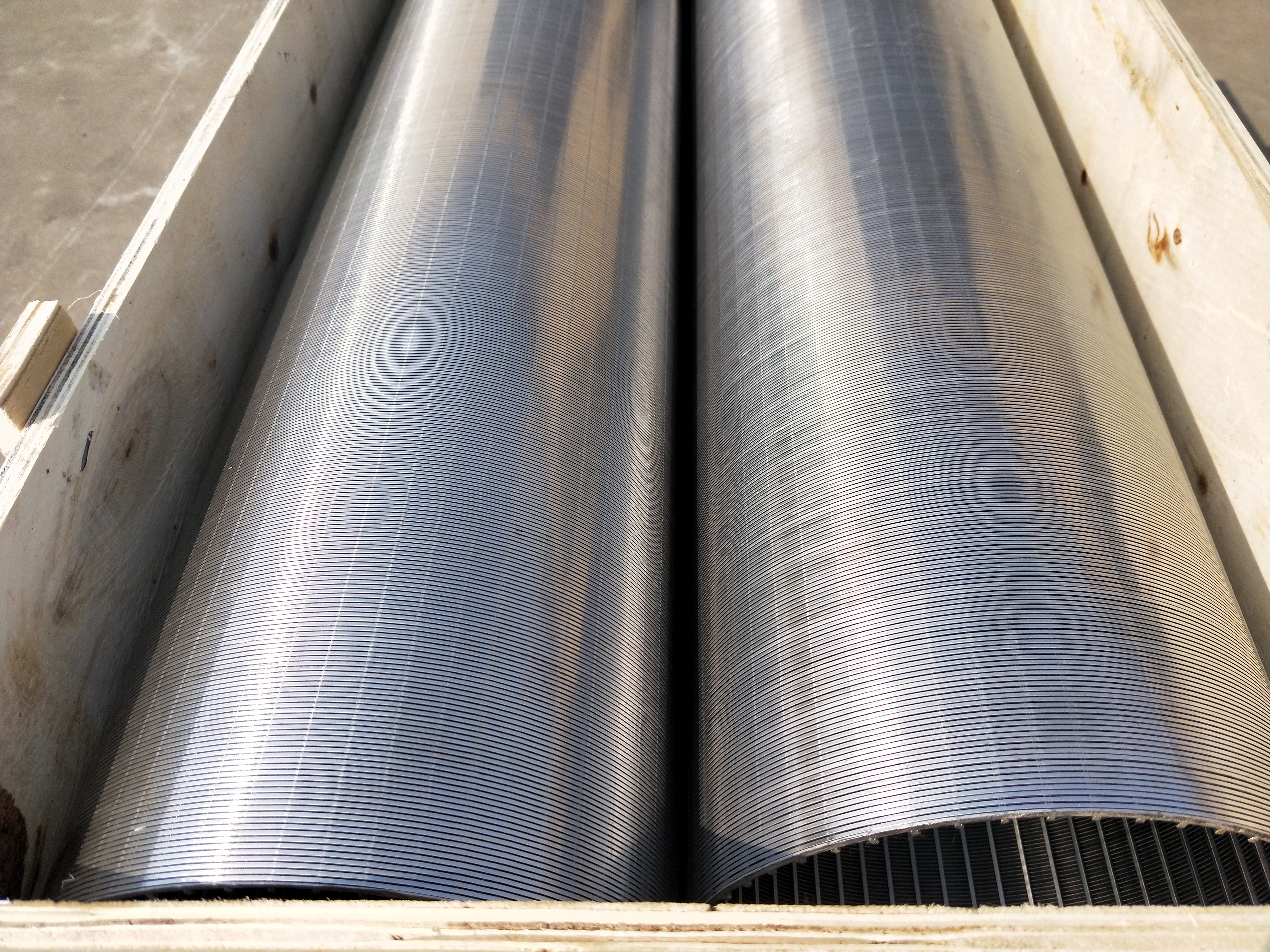

Johnson Type T Wire Wedge Wire Mesh Pre Packed Well Screens For Sea Water Intake System
Wire wrap screen also be named:
Wire wrapped screen pipe, Johnson Screen, Spiral screen tube, Welded wedge wire screen, Reversed slot screen, Continuous slot pre-pack, Water filter, Screen cylinders, Stainless steel slot tube, Reverse rolled screen, Strainer pipe, Continuous slot wire wrap well screens, Pipe base well screen, Ribbed-type wire wrapped screen, Stainless steel wire screen, Wire wrapped liner, Slot wire screen tube, Conical well screen, Suction strainers, Strainer screen wide slit screens, Wellpoint screens, Oil screen tube.
Basic Specification for Wire wrap screen:
| Johnson Wire Wrap Screen Filter |
| Specification (Profile wire): | Width(mm): 1.0 1.2 1.5 2.0 2.2 3.0 3.2
Height(mm): 2.0 2.5 3.5 4.6 5.0 6.0 |
| Specification (support rods): | Width(mm): 2.0 3.0
Height(mm): 3.0 4.6 5.0 6.0 7.0
Round: From 2.50mm to 6.0mm |
| Note: other wires and rods available upon request |
| Slot size | 0.10, 0.15, 0.20, 0.25, 0.30…… 100mm also achieved upon request. |
| Material: | Stainless steel 304, 304L, 316L ,321 etc.) |
| Length | Upto 4 meters |
| Diameter | 29-1200mm |
| Screen end | Plain beveled ends, male/female threaded, flange, close up. |
| Note: Other sizes available on request. |
| Advantage | Reduce energy consumption and increase water flow. Reduce erosion of entry surfaces and increase well life. Allow a uniform and efficient well development. Reduce significantly potential pump damage and subsequent maintenance costs. |
We can make any sizes for your according to your drawing.
Pls feel free to contact me if you have any requirements.
Other applications of wire wrap screen:
1. Separating
2. Sizing
3. Straining
4. De-watering
5. Filtering
6. Drying
7. Water intake
8. Media retention
